Product Specifications
| Prod Model: |
PM-260B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
400-600kg/H |
| Weight (Kg): |
330kg |
| Power (Kw: |
15kw |
| Processing Technics: |
Crushing-before-Mixing |
| Processing Object: |
Animal-Derived Feed |
| Type: |
Pellet Mill |
Product Description
1. Introduction

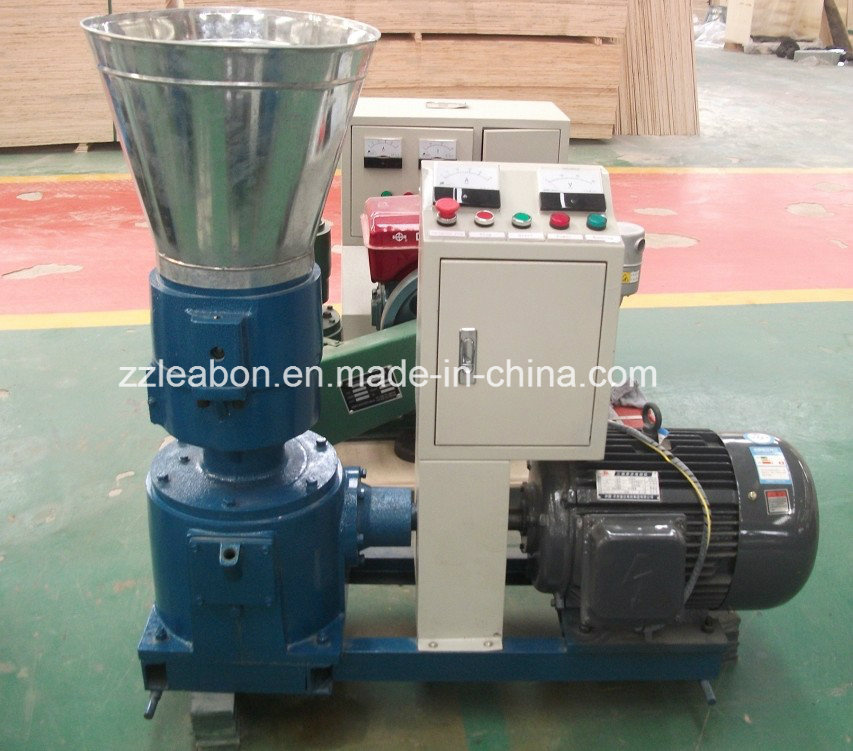

Our pellet machine can produce wood pellet and feedstuff pellet. It may also be applicable to biological fertilizer, organic manure as well as fertilizer for low-temperature granulation.
The raw material: Sawdust, rice husk, cotton stalk, cottonseed skins, weeds, crop stalks and other plant wastes, especially low-bonding and unformed materials.
The moisture of raw materials is less than the national standard of 13%. If not, the raw material must be dried. The size of raw materials is no more than 5mm, if not, the raw material must be crushed.
Technical data
The main spare part: Die and Roller
The moisture of raw material: Less than 13%
The size of raw materials: Less than 5mm
Pellet density: 1100-1200kg/m³
Heat value (wood pellet): 4000-4500kcal/kg
Ash: 8%
Pellet moisture: 10%
Pellet diameter: 2.5-12mm
Pellet length: Adjustable
. Feature:
1. Our Pelletizers are used for making wood and feedstuff pellets.
2. We have be approved by European SGS.
3. Advanced and reliable technology.
4. High throughput capacity and high quality pellets.
5. Low-maintenance and service-friendly.
Note
1. MOQ: 1set
2. Payment terms: T/T (30% is deposit; The balance is paid after loading)
3. Delivery time: Within 15days after receipt of deposit.
4. Warranty time: 1year, except the spare parts.
|
Items |
Instruction |
|
|
The size of raw materials |
3- 5mm |
|
|
The moisture of raw materials |
Less than 13% |
|
|
The main spare part |
Die and Roller |
|
|
Service life of Die |
300 h/unit |
|
|
Service life of Roller |
300h/unit |
|
|
Final product |
Biofuel pellet or Animal feed pellet |
|
|
Pellet density |
1100-1200kg/m³ |
|
|
Heat value (wood pellet) |
4000-4500kcal/kg |
|
|
Ash |
8% |
|
|
Pellet moisture |
10% |
|
|
Pellet diameter |
2.5-12mm |
|
|
Pellet length |
adjustable |
|
|
|
|
|
|
Model |
Power (kw) |
Capacity (kg/h)
Animal feed / Biomass fuel |
Weight (kg) |
Package size(cm) |
|
PM-120B |
3 |
75-100 / 35-40 |
80/100 |
75*32*51 |
|
PM-150B |
4 |
100-200 / 50-100 |
95/115 |
75*35*65 |
|
PM-200B |
7.5 |
200-300 / 100-150 |
240/270 |
100*43*95 |
|
PM-230B |
11 |
300-400 / 150-200 |
290/320 |
114*47*97 |
|
PM-260B |
15 |
400-600 / 200-300 |
330/380 |
120*50*107 |
|
PM-300B |
22 |
600-800 / 300-400 |
410/450 |
127*52*107 |
|
PM-360B |
22 |
800-900 / 400-450 |
470/500 |
127*52*107 |
|
PM-400B |
30 |
900-1100 / 450-550 |
630/660 |
147*60*115 |
Zhengzhou Leabon Import and Export Trading Co., Ltd is a professional supplier for separating machinery, pellet machine, briquette machine, pellet stove, wood crusher, sawdust dryer, and pellet making line, briquette making line, combining development, design, manufacture, sales and services. It enjoys professional production technology, superior manufacturing equipment and good testing means.
In order to meet different needs of customers, we have been constantly developing and improving product technology, quality, and process automation and after-sale service. Our unremitting efforts for years have bought us great trust from customers and our products enjoy fast sales abroad.
We don' T aim at maximizing profits, don' T aim at maximizing assets scale, and don' T lower quality to cater to markets at low price. We hold the management tenet: Guaranteed quality, quality goods, morality first, credit foremost. We take customers' Needs as our developing basis and take customers' Satisfaction as our goal. Reasonable levels of prices can meet different needs. We have been in the practice of quick serve, joining hands with personages of various circles to make sincere operation and common development!
